Stainless Steel Regulating Valve Divert Seat Valve

  • Stainless Steel Regulating Valve Divert Seat Valve
  • Stainless Steel Regulating Valve Divert Seat Valve
  • Stainless Steel Regulating Valve Divert Seat Valve
  • Stainless Steel Regulating Valve Divert Seat Valve

Stainless Steel Regulating Valve Divert Seat Valve

    Unit Price: 32 USD
    Min. Order: 50 Piece/Pieces
    Packaging: Plywood case
    Brand: ST
    Transportation: Ocean,Air,Express
    Place of Origin: CHINA
    Supply Ability: 10000 Piece/Pieces per Month
    Certificate: ISO9001:2015
    HS Code: 8481804090
    Port: Ningbo/Shanghai

Product Description

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve

Product Properties

 Product name

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve

Application

Divert seat valve is a kind of manual hygienic single-seat valve,which is applied to a wide range of application in the food-proc essing industry,beverage production,pharmaceutical and fine Chemicals industries.
Material
· Materials:   AISI304 316L

Standard Design
· Standards:  DIN,SMS,ISO
· End connections:   Butt-welded,Sanitary Clamp,or others upon request
 Technical Specification
· Size available:   1",1 1/2",2"2 1/2",3",3 .5",4"
· Max.working pressure:  147psi (10bar)
· Temperature range:   14~ 24°F (-10~ 120°C),EPDM
· Gasket material:   Silicone,EPDM,PTFE,NBR
· Inside polishing:  Ra16-32& micro in (0.4~ 0.8um)
· Sample:  Available

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat ValveSanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve

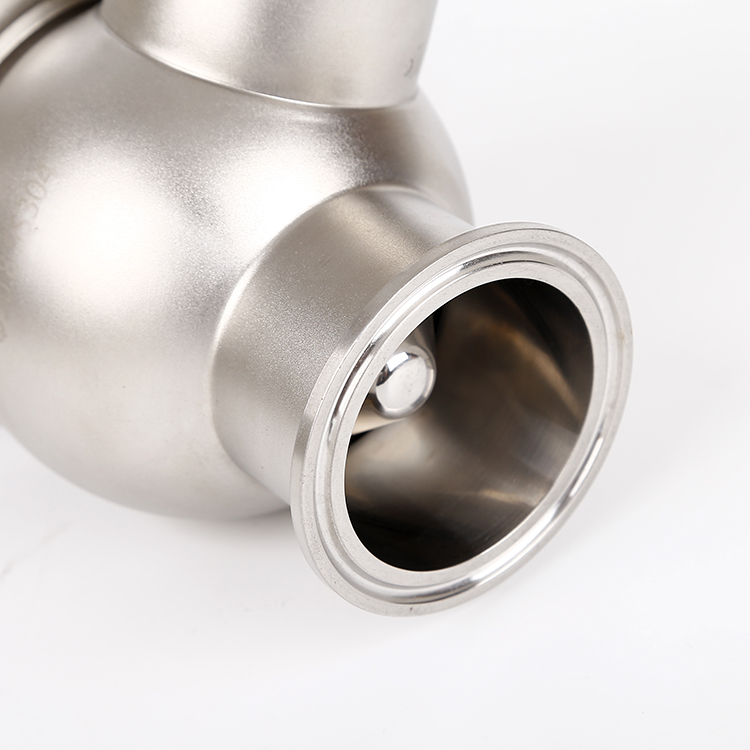

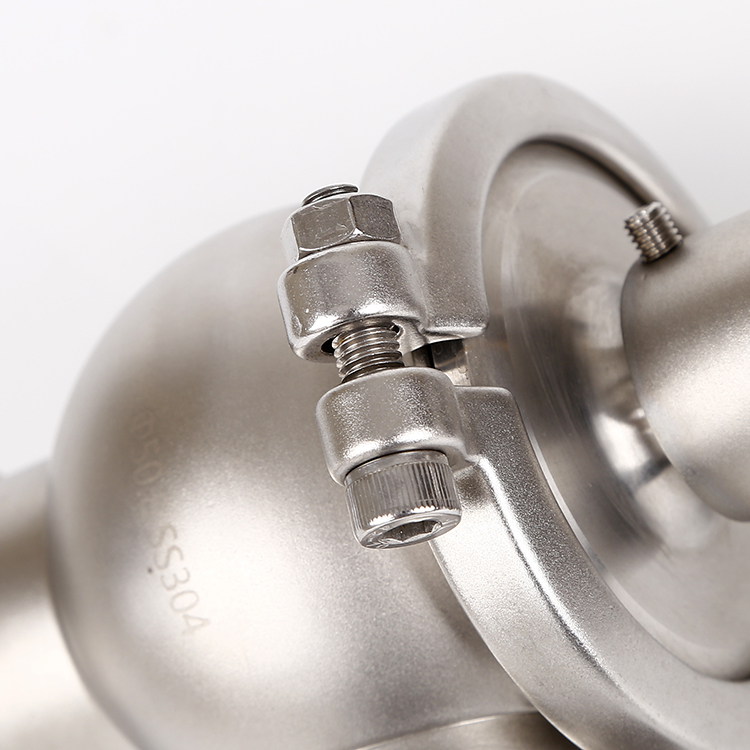

Product Show

Company Application

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve


Company Profile

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve


EXHIBITION

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve


FAQ

1. Design & Engineering


A.Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.



B. We look forward to delivering exceptional designs and advice for your project.



2. How to buy your ideal products?


A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.



3. How to pay?


A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.



4. What is the delivery time?


A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.



5. Package information?


A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.



B:Not more than 35kg per carton box,about 1000kg per pallet.



6.How long to make a sample?Is it free?


A:Generally we have stock for general sizes, so we always can send it within 1-3 days. Generally the buyer pay the sample fee and freight fee.


7.How to cantact us?


A:Send your inquiry details in the below,Click “send” now!

Packaging & Shipping

Sanitary Manual Stainless Steel Regulating Valve And Weld Divert Seat Valve



WENZHOU KASIN VALVE PIPE FITTING CO.LTD

 Wenzhou Kasin Valve Pipe Fitting Co., Ltd. is located in Wenzhou City. We are one of the few special factories which can produce high precision sanitary fluid equipment in China.

Here are our products ranges:
1) Sanitary Valves: sanitary butterfly valves; sanitary Ball Valves; sanitary check valves; sanitary diaphragm valves; sample valves; pneumatic butterfly valves;needle valves etc.
Sanitary pumps;centrifugal pumps; self-priming pumps; lobe pumps; blender Sanitary fittings/pipe fittings: elbows; ferrules; tees; crosses; clamps; reducers; pipe clips; pipe holders; hose nipples; Sight Glass; flanges; cleaning balls; manhole covers/manway doors; sanitary unions/ unions; sanitary filters/filters; strainers; sanitary tubes/sanitary pipes.

2)Vacuum fittings;vacuum couplings;vacuum clamps;Vacuum Flanges;centering rings;bellows etc.

3)API Gasket . R Series, RX Series, BX Series, and etc.

4)Press fitting. material: inox ,carbon, copper. inox press fittings have been approved by DVGW.


"Quality is First, Service is First" is our working ideal. We adopt LGMazak Company's CNC processing machines, the most advanced production equipment, and strict quality control system. Our products are mainly exported to Europe, and America. We will offer quality products at the best price with good services to our customers around the world. We are looking forward to cooperating with you.
